Governed pull request proof

This walkthrough runs real AegisFlow MCP and admin endpoints against local mock GitHub server. No provider key, GitHub token, or paid service is used.

Recorded flow:

What proof covers

Step	Routed action	Decision or result
1	github.list_repos	allow, then forward upstream
2	github.delete_repo	block with JSON-RPC -32001
3	github.create_pull_request	review with JSON-RPC -32002
4	Reviewer approves pending item	approved
5	Client retries same pull request	allow, then forward upstream
6	Session evidence verification	valid signatures and chain

Approval applies to one exact action. Request ID and timestamp may change during retry. Actor, task, protocol, tool, target, arguments, and requested capability must match.

Run starter kit

Prerequisites: Go 1.26.6 or later, Node.js, curl, and jq.

git clone https://github.com/saivedant169/AegisFlow.git
cd AegisFlow/starter-kit
./install-pr-writer.sh

Installer performs these checks:

• Builds aegisflow and aegisctl.
• Starts gateway, admin API, MCP gateway, and mock MCP upstream.
• Confirms one allow, one review, and one block policy decision.

Local endpoints:

Service	Address
Gateway	http://127.0.0.1:8080
Admin dashboard and API	http://127.0.0.1:8081
MCP gateway	http://127.0.0.1:8082/mcp
Mock MCP upstream	http://127.0.0.1:3000

Generated local config is configs/pr-writer.yaml. Policy source is starter-kit/policies/pr-writer.yaml.

Reproduce recorded proof

Run from repository root after starter kit is active:

./scripts/record-proof.sh

Script sends JSON-RPC calls through MCP gateway. It reads approval from admin queue, approves exact action through admin API, retries call, then verifies default evidence session.

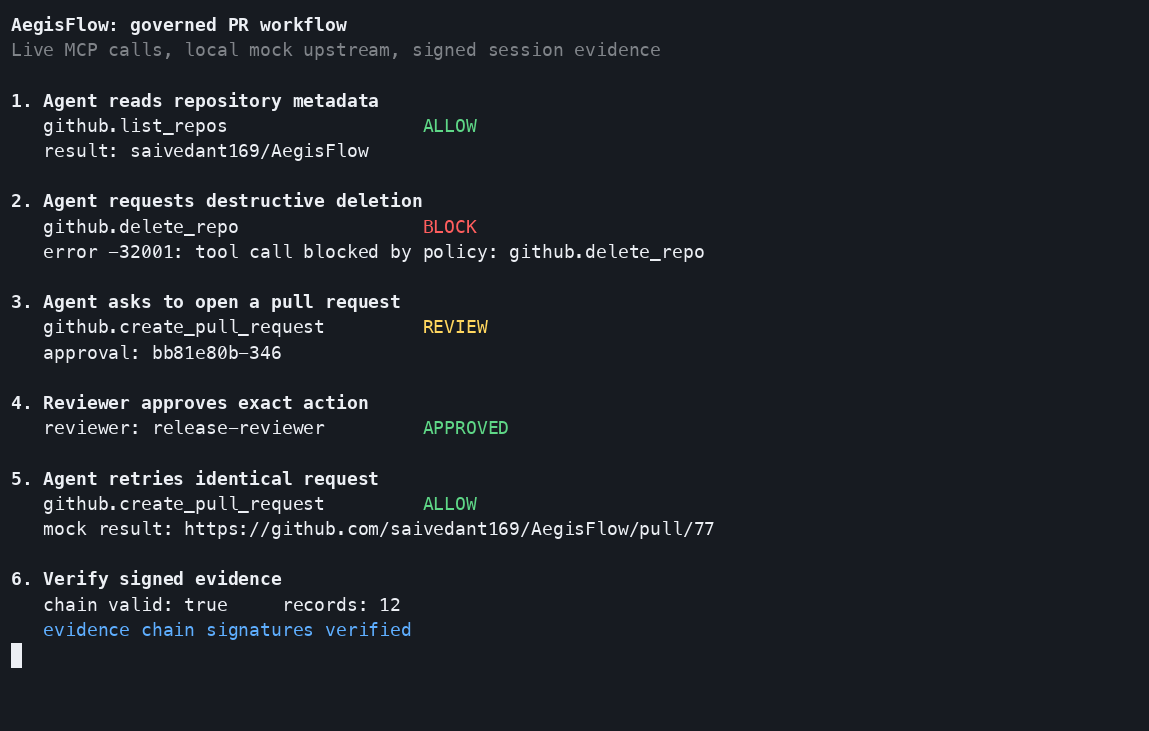

Expected decision lines:

github.list_repos                  ALLOW
github.delete_repo                 BLOCK
github.create_pull_request         REVIEW
reviewer: release-reviewer         APPROVED
github.create_pull_request         ALLOW
chain valid: true
evidence chain signatures verified

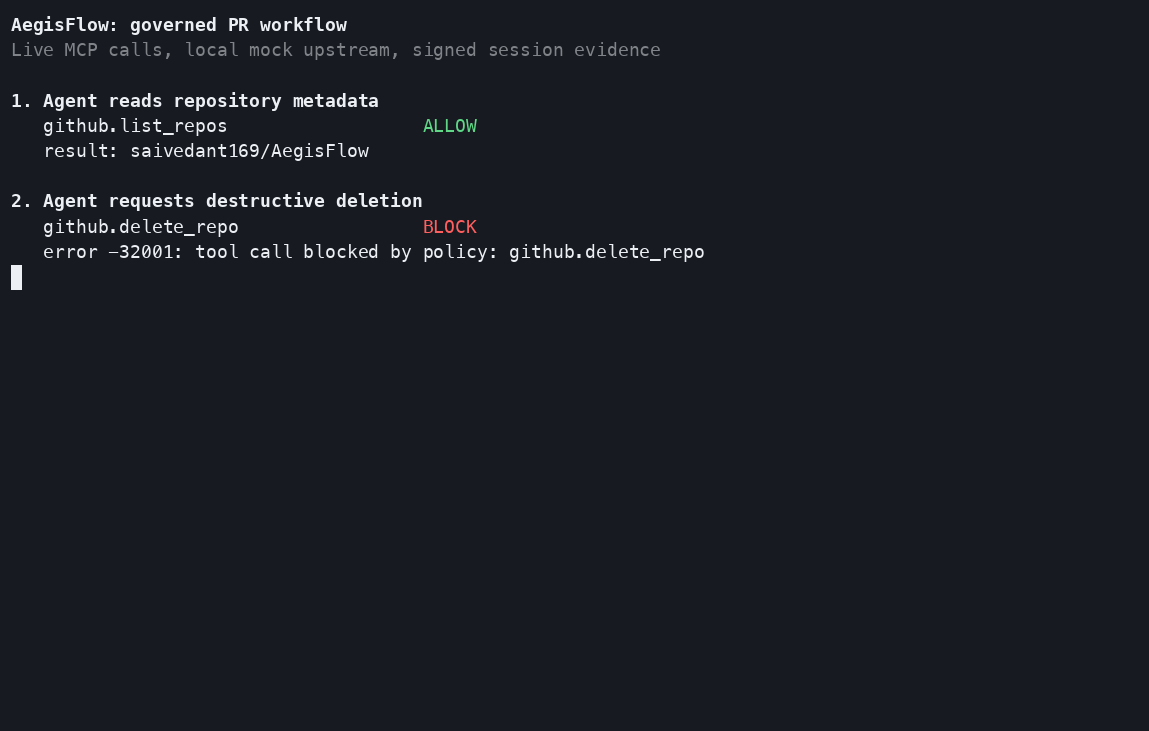

Blocked action

Blocked call never reaches upstream mock server. MCP client receives structured error.

Relevant policy rule:

- protocol: "mcp"
  tool: "github.delete_*"
  decision: "block"

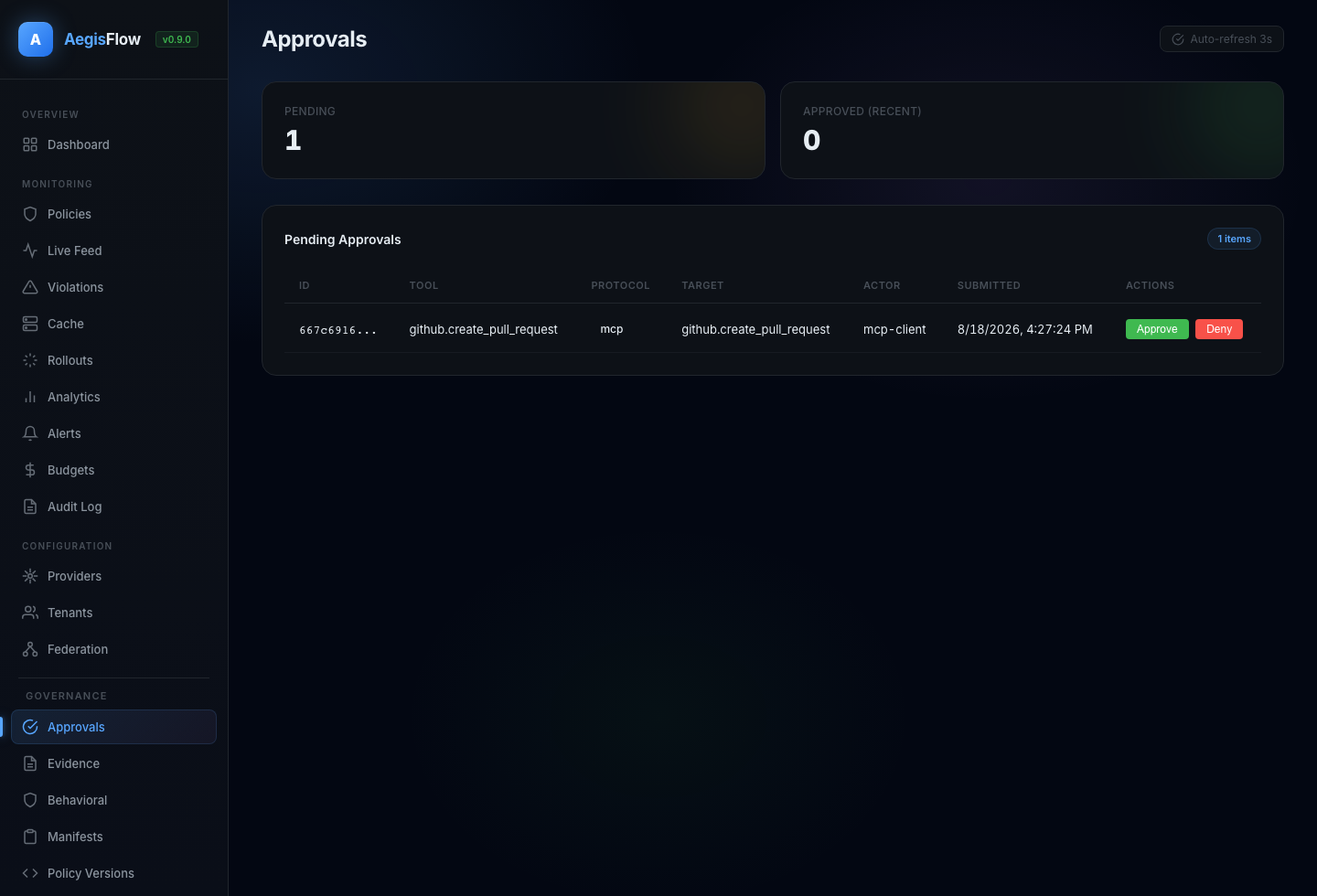

Approval queue

Pull request creation waits in admin queue. Reviewer can inspect tool, target, actor, and submission time before choosing approve or deny.

CLI can handle same queue:

./bin/aegisctl pending
./bin/aegisctl approve <approval-id> "diff scope checked"

Approval is consumed after matching retry. Changed title, branch, base, repository, actor, or task creates new review.

Restart and replay test uses same HTTP path and records each assertion:

make e2e-approval-security

Signed evidence

Set stable evidence key before gateway starts:

export AEGISFLOW_EVIDENCE_KEY=<secret-from-key-manager>

Starter installer enables SQLite state under .aegisflow-run/state.db and keeps local evidence key in .aegisflow-run/evidence.key. For production, load key from secret manager. Without SQLite, approval and evidence state stays in memory.

./bin/aegisctl evidence sessions
./bin/aegisctl verify --session <session-id>
./bin/aegisctl evidence export <session-id> --file evidence.json

Hash links and signatures detect changes to retained records. Detecting a removed tail or an omitted session requires an independently retained checkpoint or export. Verification does not prove calls outside AegisFlow never happened.

Upstream credentials

Runtime upstream credential issuance is disabled in this development candidate. The local proof uses a mock upstream and mints no provider credentials. See candidate migration.

Connect editor

• Claude Code setup
• Cursor setup

Editor built-in file and shell actions are not intercepted automatically. Only calls routed through AegisFlow boundary enter policy engine.

Stop local services

Installer writes process IDs under .aegisflow-run/:

kill "$(cat .aegisflow-run/aegisflow.pid)"
kill "$(cat .aegisflow-run/mock-mcp.pid)"

Read threat model before production use. Use troubleshooting guide when local checks fail.
